Analyzing the Boresch restraint geometry¶
A Boresch-style restraint restrains a ligand to its bound pose while its nonbonded interactions are switched off during a binding free energy calculation and is used in both ABFE and SepTop approaches (see Boresch et al., 2003 for the original formulation of this restraint scheme). Once a ligand is fully decoupled, the restraint is the only interaction holding it in place, since no protein-ligand nonbonded contacts remain to do so. A restraint that is too loose, or anchored to a poor choice of atoms, may allow the ligand to drift or sample a pose other than the one intended, manifesting downstream as noisy per-repeat free energy estimates or slow convergence. Plotting the restraint’s geometry against its equilibrium reference values provides a quick diagnostic for this failure mode.
The BoreschRestraintAnalysis in openfe_analysis computes a Boresch restraint’s bond, two angles, and three dihedrals over a trajectory, for an MDAnalysis.AtomGroup of 6 atoms ordered [H0, H1, H2, G0, G1, G2] (host atoms then guest atoms).
This notebook shows how to perform the restraint analysis for the SepTop protocol. Given a SepTop results JSON and its trajectory/topology files, we locate the restraint’s atom indices and equilibrium reference values, run BoreschRestraintAnalysis across every lambda window, and plot the first and last against the reference values, as a visual check for whether the restraint remained well-behaved during the simulation.
The same pattern applies to ABFE results, both protocols serialize restraint geometry as the same BoreschRestraintGeometry object with the difference that SepTop has two sets of Boresch-style restraints, one for each ligand, while ABFE has a single BoreschRestraintGeometry object.
1. Imports¶
import json
import pathlib
import matplotlib.pyplot as plt
import MDAnalysis as mda
import netCDF4 as nc
import numpy as np
import pooch
from gufe.tokenization import JSON_HANDLER
from openfe_analysis import FEReader
from openfe_analysis.restraints import BoreschRestraintAnalysis
from openfe_analysis.utils.universe_utils import create_universe_single_state
from openff.units import Quantity, unit
2. Download tutorial data¶
septop_files = pooch.retrieve(
url="https://zenodo.org/records/21872497/files/septop_boresch_analysis.tar.gz",
known_hash="md5:e692f6b1cb6b43ba2986394cc887f327",
processor=pooch.Untar(extract_dir="septop_boresch_analysis"),
)
septop_paths = {pathlib.Path(f).suffix: pathlib.Path(f) for f in septop_files}
results_json = septop_paths[".json"]
trajectory_nc = septop_paths[".nc"]
subsampled_pdb = septop_paths[".pdb"]
3. Load the results JSON¶
with open(results_json, "r") as f:
results = json.load(f, cls=JSON_HANDLER.decoder)
4. Find the complex-leg Analysis unit outputs¶
The output of the SepTop Analysis Unit of the complex-leg includes everything we need:
restraint_geometry_A/B (atom indices and equilibrium reference values),
and selection_indices (how full-system atom indices map onto the
subsampled trajectory in subsampled_pdb/trajectory_nc).
This example dataset contains a single repeat, so we take the first
complex-leg Analysis Unit found. For multi-repeat data, match
outputs["repeat_id"] against the specific repeat whose trajectory you’re
loading as SepTop can pick a different Boresch restraint per repeat.
complex_analysis_outputs = None
for key, unit_result in results["unit_results"].items():
if not key.startswith("ProtocolUnitResult"):
continue
if "Analysis" not in unit_result.get("name", ""):
continue
outputs = unit_result["outputs"]
if outputs.get("simtype") != "complex":
continue
complex_analysis_outputs = outputs
break
5. Helper: translate full-system atom indices¶
host_atoms/guest_atoms in the restraint geometry are full-system
indices, but the trajectory only contains the subsampled atoms
(selection_indices). Here, we have a small function to help find the atom indices of the Boresch atoms in the subsampled system.
def translate_to_subsampled_indices(full_system_indices, selection_indices):
"""
Translate a list of full-system atom indices into their positions
within `selection_indices`, preserving the original order.
"""
selection_indices_list = selection_indices.tolist()
return [selection_indices_list.index(idx) for idx in full_system_indices]
6. Helper: reconstruct a Quantity from the stored restraint geometry¶
Restraint geometry fields (r_aA0, theta_A0, …) are gufe Quantity
fields, serialized as a dictionary: {"val": <float>, "unit": "<pint unit string>"}. Here, we have a small helper function that reconstructs the openff.units.Quantity.
def quantity_from_geom(geom: dict, key: str) -> Quantity:
field = geom[key]
return Quantity(field["val"], field["unit"])
7. Run BoreschRestraintAnalysis across every lambda window¶
For each ligand (A and B), this translates the restraint’s
host_atoms/guest_atoms into subsampled indices, then runs
BoreschRestraintAnalysis at every lambda window, storing the full per-state time series.
selection_indices = np.asarray(complex_analysis_outputs["selection_indices"])
analysis_results = {}
TARGET_UNITS = [unit.angstrom, unit.radians, unit.radians, unit.radians, unit.radians, unit.radians]
with nc.Dataset(trajectory_nc) as ds:
n_lambda = ds.dimensions["state"].size
if hasattr(ds, "PositionInterval"):
n_frames = len(range(0, ds.dimensions["iteration"].size, ds.PositionInterval))
else:
n_frames = ds.dimensions["iteration"].size
skip = max(n_frames // 500, 1)
u_top = mda.Universe(subsampled_pdb)
for ligand in ("A", "B"):
geom_key = f"restraint_geometry_{ligand}"
geom = complex_analysis_outputs[geom_key]
host_atoms_full = geom["host_atoms"]
guest_atoms_full = geom["guest_atoms"]
host_atoms = translate_to_subsampled_indices(host_atoms_full, selection_indices)
guest_atoms = translate_to_subsampled_indices(guest_atoms_full, selection_indices)
restraint_atom_indices = host_atoms + guest_atoms
reference_values = [
quantity_from_geom(geom, "r_aA0").m_as(TARGET_UNITS[0]),
quantity_from_geom(geom, "theta_A0").m_as(TARGET_UNITS[1]),
quantity_from_geom(geom, "theta_B0").m_as(TARGET_UNITS[2]),
quantity_from_geom(geom, "phi_A0").m_as(TARGET_UNITS[3]),
quantity_from_geom(geom, "phi_B0").m_as(TARGET_UNITS[4]),
quantity_from_geom(geom, "phi_C0").m_as(TARGET_UNITS[5]),
]
output: dict[str, list] = {
"bond": [],
"angle1": [],
"angle2": [],
"dihedral1": [],
"dihedral2": [],
"dihedral3": [],
}
for state_idx in range(n_lambda):
universe = create_universe_single_state(u_top._topology, ds, state_idx)
restraint_ag = universe.atoms[restraint_atom_indices]
restraint_analysis = BoreschRestraintAnalysis(restraint_ag).run(step=skip)
output["bond"].append(restraint_analysis.results.bond)
output["angle1"].append(restraint_analysis.results.angle1)
output["angle2"].append(restraint_analysis.results.angle2)
output["dihedral1"].append(restraint_analysis.results.dihedral1)
output["dihedral2"].append(restraint_analysis.results.dihedral2)
output["dihedral3"].append(restraint_analysis.results.dihedral3)
analysis_results[ligand] = {"reference_values": reference_values, **output}
/Users/hannahbaumann/.local/share/mamba/envs/openfe/lib/python3.13/site-packages/parmed/utils/netcdf.py:46: DeprecationWarning: `np.compat`, which was used during the Python 2 to 3 transition, is deprecated since 1.26.0, and will be removed
from numpy.compat import asbytes, asstr
8. Plot the results¶
We plot the first and last lambda windows which are usually the
most informative pair to check, since it confirms the restraint behaves
consistently at both ends of the alchemical pathway. Pass windows=[...] to plot a
different subset.
STATE_COLORS = {
"interacting, unrestrained": "#8a2283",
"non-interacting, restrained": "#00bdaa",
}
def label_lambda_window(ligand, window, n_lambda):
"""
Helper function to label lambda window.
"""
if n_lambda <= 1 or window not in (0, n_lambda - 1):
return f"lambda_{window}"
is_first_window = window == 0
if ligand == "A":
return "interacting, unrestrained" if is_first_window else "non-interacting, restrained"
if ligand == "B":
return "non-interacting, restrained" if is_first_window else "interacting, unrestrained"
return f"lambda_{window}"
def plot_boresch_restraint(analysis_results_for_ligand, ligand_label, ligand, windows=None):
"""
Plot BoreschRestraintAnalysis results for selected lambda windows
against their reference values.
Parameters
----------
analysis_results_for_ligand : dict
One ligand's entry from `analysis_results`: a dict with keys
"reference_values", "bond", "angle1", "angle2", "dihedral1",
"dihedral2", "dihedral3" -- each (other than "reference_values")
a list indexed by lambda state.
ligand_label : str
Used in the figure title.
ligand : str
"A" or "B"
windows : list[int], optional
Which lambda state indices to plot. Defaults to the first and last
state.
"""
titles = ["bond", "angle1", "angle2", "dihedral1", "dihedral2", "dihedral3"]
y_labels = [f"[{u:~P}]" for u in TARGET_UNITS]
reference_values = analysis_results_for_ligand["reference_values"]
n_lambda = len(analysis_results_for_ligand["bond"])
if windows is None:
windows = [0, n_lambda - 1] if n_lambda > 1 else [0]
fig = plt.figure(figsize=(8, 4))
first_ax = None
for window in windows:
label = label_lambda_window(ligand, window, n_lambda)
color = STATE_COLORS.get(label)
for i, attr in enumerate(titles):
values = analysis_results_for_ligand[attr][window]
ax = plt.subplot(2, 3, i + 1)
ax.plot(values, label=label, color=color)
ax.plot([reference_values[i]] * len(values), "--", c="black")
ax.set_title(attr)
ax.set_ylabel(y_labels[i], fontsize=8)
if first_ax is None:
first_ax = ax
handles, labels = first_ax.get_legend_handles_labels()
fig.suptitle(f"Boresch restraint {ligand_label}", fontsize=10, y=1.08)
fig.legend(
handles, labels,
loc="upper center", bbox_to_anchor=(0.5, 0.99),
ncol=len(handles), fontsize=10, frameon=False,
)
fig.tight_layout()
return fig

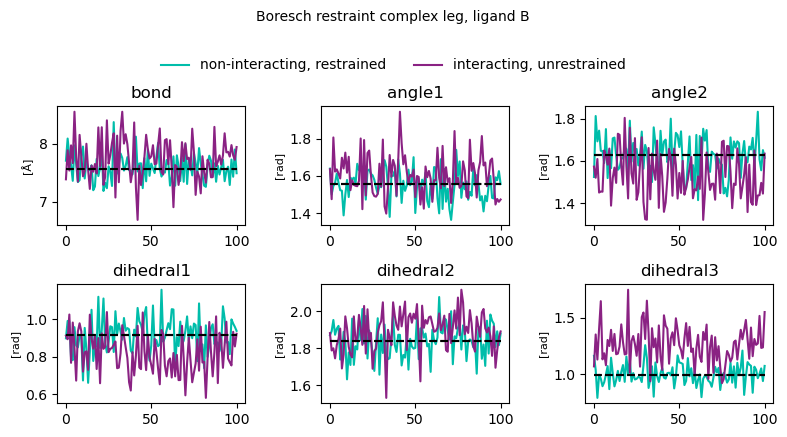

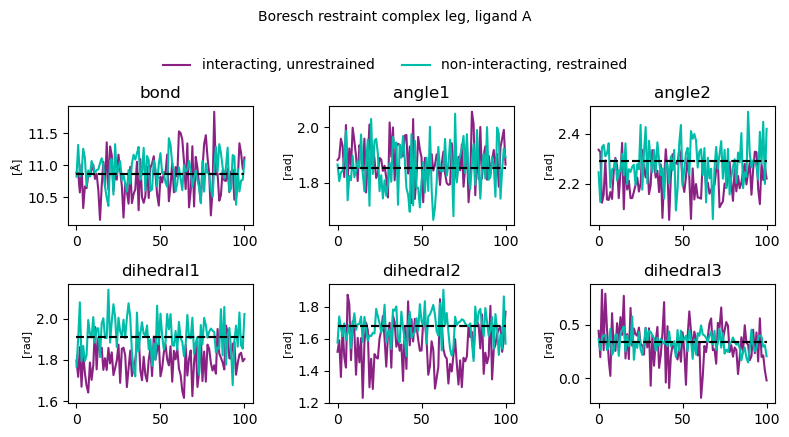

for ligand, data in analysis_results.items():
fig = plot_boresch_restraint(data, ligand_label=f"complex leg, ligand {ligand}", ligand=ligand)
plt.show()
plt.close(fig)
What to look for¶
For a well-behaved restraint, each quantity (bond, angle1, angle2,
dihedral1, dihedral2, dihedral3) should fluctuate around its dashed
reference line, for both the first and last lambda window. If a quantity
sits at a consistent offset from the reference line rather than fluctuating
around it, that’s worth investigating.
